Overview - Rear Wheel Housing Liner

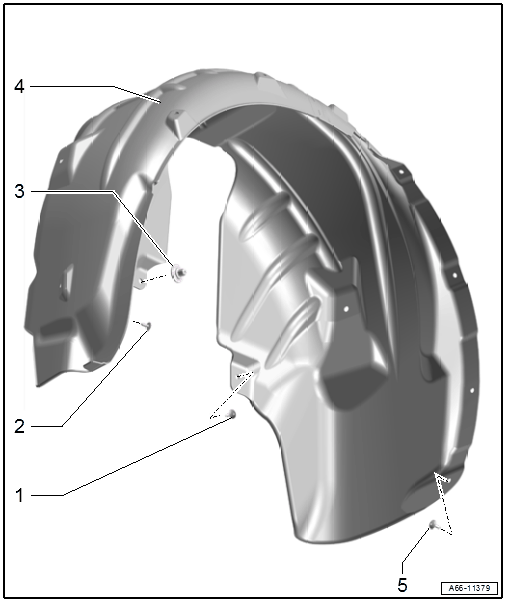

GWWA66-11379Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 2 Nm
  2. Bolt
    • 2 Nm
    • Quantity: 4
  3. Nut
    • 2 Nm
    • Left: quantity 4; right: quantity 3
  4. Rear Wheel Housing Liner
  5. Bolt
    • 2 Nm
    • Quantity: 4
