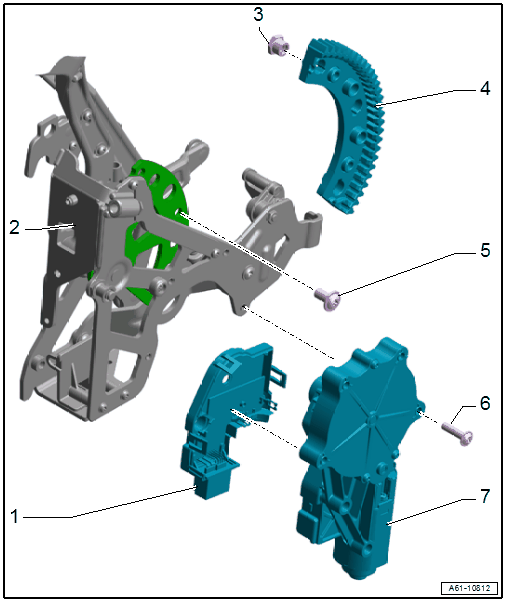

Overview - Convertible Top Motor
- Control Board
- For the convertible top motor
- Removing and Installing. Refer to CONVERTIBLE TOP MOTOR CONTROL BOARD, REMOVING AND INSTALLING .
- Convertible Top Main Bearing
- Overview. Refer to OVERVIEW - CONVERTIBLE TOP MAIN BEARING .
- Nut
- Gear
- For convertible top operation
- Removing and Installing. Refer to GEAR FOR CONVERTIBLE TOP OPERATION, REMOVING AND INSTALLING .
- Bolt
- 38 Nm
- Quantity: 3
- Bolt
- 8 Nm
- Quantity: 4
- Convertible Top Motor
- Right: Convertible Top Motor -V82-, Left: Convertible Top Motor 2 -V576-
- The motors must always be replaced together to avoid malfunctions or error messages.
- Removing and Installing. Refer to CONVERTIBLE TOP MOTORS, REMOVING AND INSTALLING .
