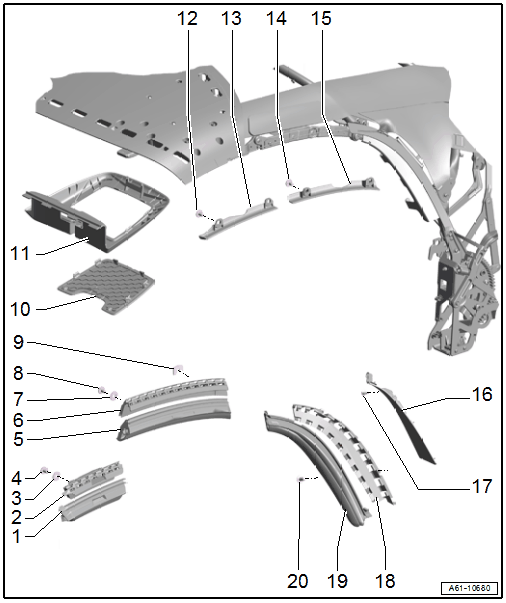

Overview - Convertible Top Seal, Convertible Top Trim Panels

Courtesy of AUDI OF AMERICA, LLC

1. Convertible Top Seal
   • Front
   • Removing and Installing. Refer to FRONT CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
2. Retaining Strip
   • For the front convertible top seal
   • Removing and Installing. Refer to FRONT CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
3. Washer
   • The quantity depends on the flush dimension of the front convertible top seal to the center convertible top seal
4. Bolt
   • 5 Nm
   • Quantity: 2
5. Convertible Top Seal
   • Center
   • Removing and Installing. Refer to CENTER CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
6. Retaining Strip
   • For the center convertible top seal
   • Removing and Installing. Refer to CENTER CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
7. Washer
   • The quantity depends on the dimension of the center convertible top seal to the rear convertible top seal
   • The washer is replaced if necessary by the shim (see item 9).
8. Bolt
   • 5 Nm
   • Quantity: 2
9. Shim
   • The quantity and size depends on the flush dimension of the center convertible top seal to the rear convertible top seal
10. Cover
    • For the convertible top latch trim panel
    • Removing and Installing. Refer to CONVERTIBLE TOP LATCH TRIM PANEL, REMOVING AND INSTALLING .
11. Convertible Top Latch Trim Panel
    • Removing and Installing. Refer to CONVERTIBLE TOP LATCH TRIM PANEL, REMOVING AND INSTALLING .
12. Bolt
    • 5 Nm
    • Quantity: 2
13. Trim Panel
    • For the front roof frame
    • Spacers(s) are inserted for the alignment
    • Removing and Installing. Refer to FRONT ROOF FRAME TRIM PANEL, REMOVING AND INSTALLING .
14. Bolt
    • 5 Nm
    • Quantity: 2
15. Trim Panel
    • For the center roof frame
    • Spacers(s) are inserted for the alignment
    • Removing and Installing. Refer to CENTER ROOF FRAME TRIM PANEL, REMOVING AND INSTALLING .
16. Trim Panel
    • For the rear roof frame
    • Removing and Installing. Refer to REAR ROOF FRAME TRIM PANEL, REMOVING AND INSTALLING .
17. Bolt
    • 2 Nm
    • Quantity: 2
18. Retaining Strip
    • For the rear convertible top seal
    • Removing and Installing. Refer to REAR CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
19. Convertible Top Seal
    • Rear
    • Removing and Installing. Refer to REAR CONVERTIBLE TOP SEAL, REMOVING AND INSTALLING .
20. Bolt
    • 5 Nm
    • Quantity: 3
