Overview - Seat Pan, Side Sill/Tunnel-Side Seat Trim/Seat Side Trim

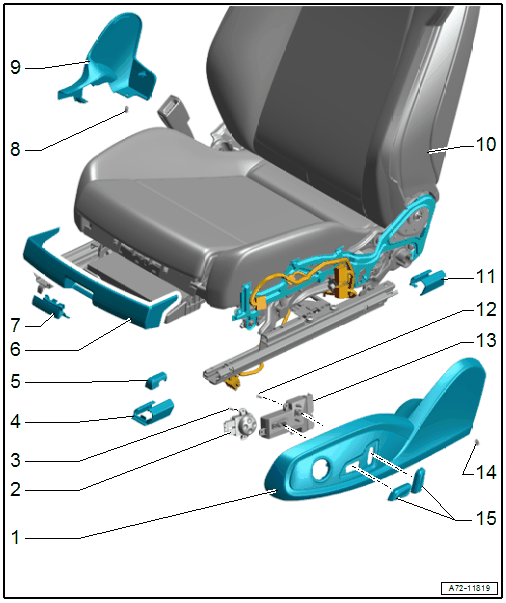

Fig 1: Exploded View Of Seat Pan, Side Sill/Tunnel-Side Seat Trim/Seat Side Trim

Courtesy of AUDI OF AMERICA, LLC

1. Seat Side Trim on Side Sill
   • Equipment levels
   • Removing and installing. Refer to SEAT SIDE TRIM ON SIDE SILL SIDE, REMOVING AND INSTALLING .
2. Driver Seat Lumbar Support Adjustment Switch -E176-
   • Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
   • Allocation. Refer to the Parts Information.
   • Removing and installing. Refer to Driver Seat Lumbar Support Adjustment Switch -E176- /Front Passenger Seat Lumbar Support Adjustment Switch -E177-, REMOVING AND INSTALLING .
3. Bolt
   • 1.8 Nm
   • Quantity: 2
4. Front Cover
   • For the seat rail
   • Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
   • Carefully push onto the seat rail until it engages audibly
   • Quantity: 2
5. Spindle Cover
   • For the seat rail
   • Carefully push onto the spindle until it engages audibly
   • Quantity: 2
6. Seat Depth Adjuster Trim
   • Removing and installing. Refer to TRIM/HANDLE FOR SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
   • Press on until it engages audibly
7. Seat Depth Adjuster Handle
   • Removing and installing. Refer to TRIM/HANDLE FOR SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
   • Press on until it engages audibly
8. Expanding Rivet
9. Tunnel Side Seat Side Trim
   • Removing and installing. Refer to SEAT SIDE TRIM ON TUNNEL SIDE, REMOVING AND INSTALLING .
10. Front Seat
11. Rear Cover
    • Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING .
    • Carefully push onto the seat rail until it engages audibly
    • For the seat rail
    • Quantity: 2
12. Bolt
    • 1.8 Nm
    • Quantity: 3
13. Driver Seat Adjustment Control Head -E470-
    • With:
      • Driver Backrest Adjustment Switch -E96-
      • Driver Seat Angle Adjustment Switch -E222-
      • Driver Seat Forward/Back Adjustment Switch -E363-
      • Driver Seat Height Adjustment Switch -E364-
    • Front passenger side: Front Passenger Seat Adjustment Control Head -E471- with:
      • Front Passenger Seat Forward/Back Adjustment Switch -E64-
      • Front Passenger Backrest Adjustment Switch -E98-
      • Front Passenger Seat Angle Adjustment Button -E334-
      • Front Passenger Seat Height Adjustment Switch -E365-
    • Equipment levels
    • Removing and installing. Refer to Driver Seat Adjustment Control Head -E470- /Front Passenger Seat Adjustment Control Head -E471-, REMOVING AND INSTALLING .
14. Expanding Rivet
15. Actuator
    • For seat adjustment
    • Equipment levels
    • Clipped in on the control head
    • Removing and installing. Refer to Driver Seat Adjustment Control Head -E470- /Front Passenger Seat Adjustment Control Head -E471-, REMOVING AND INSTALLING .
    • Press on until it engages audibly
