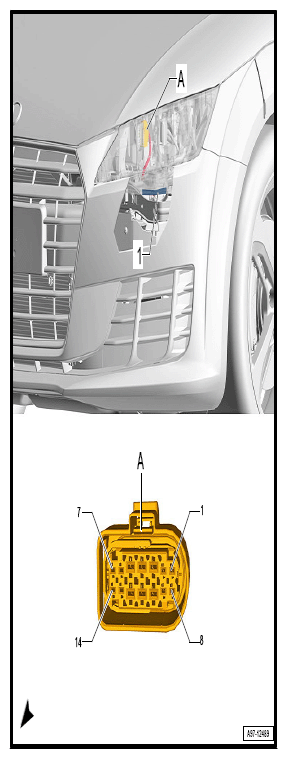

Front Left Headlamp -MX1-/Front Right Headlamp -MX2-, Location Led, Matrix-Beam

  1. 1  - Left LED Headlamp Power Output Stage 1 -A31-
  2. 1  - Right LED Headlamp Power Output Stage 1 -A27-
  1. A  - 14-Pin Connector -T14b-, black/
  2. A  - 14-Pin Connector -T14a-, black
G12778503Courtesy of AUDI OF AMERICA, LLC
