Electrical Components Locations & Connector End Views -- TT QUATTRO
>>
Comp. LOC. Vehicle Cabin Modules
>>
Convertible Top Locking Motor V223
>>

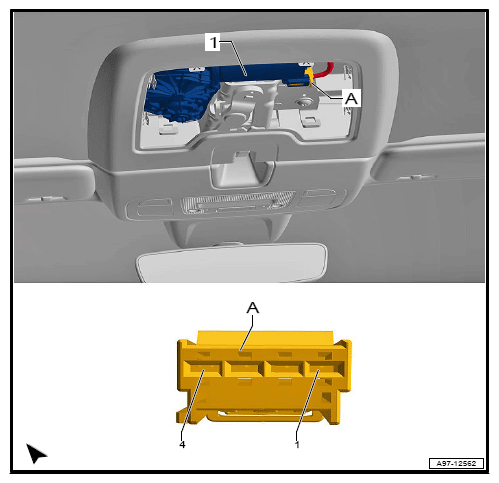

Convertible Top Locking Motor -V223- Location
Convertible Top Locking Motor -V223- Location
Behind The Cover Near Front Interior Lamp -W1-.
1
- Convertible Top Locking Motor -V223-
A
- 4-Pin Connector -T4ch-, black
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
