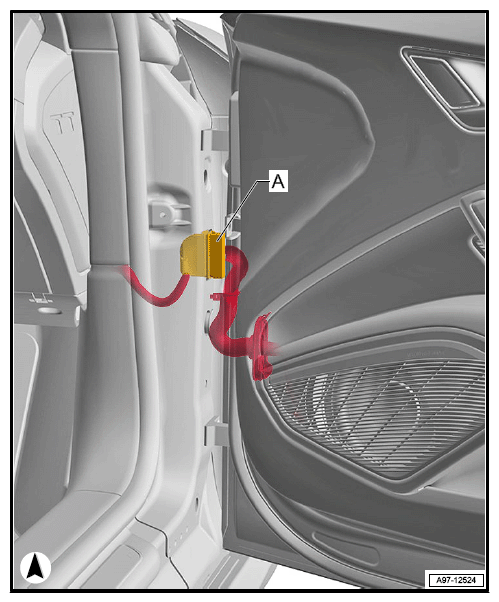

Connector Station On Right Front Door -TTVR-

  1. A  - 27-Pin Connector -T27b-, black
  2. A  - 27-Pin Connector -T27bx-, black
G12778594Courtesy of AUDI OF AMERICA, LLC
