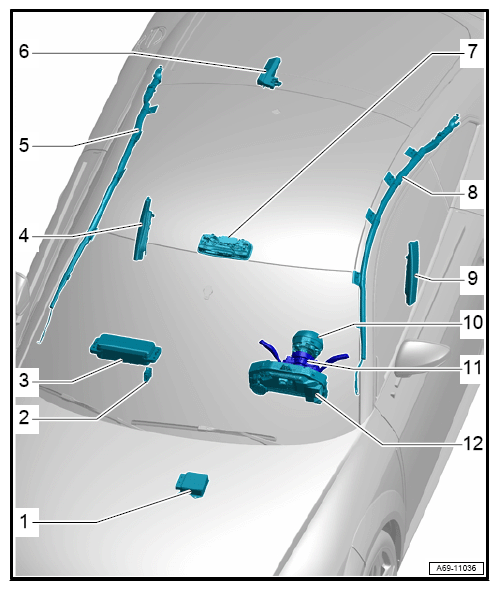

Comp. LOC. Airbag: Airbags
Coupe' Shown, Roadster Similar.
- 1
- Airbag control module J234
- Located On Center Console Near Dash Panel
- 2 - Front passenger airbag deactivation key switch -E224- (optional)
- 3 - Front passenger airbag igniter 1 -N131-
- 3 - Front passenger airbag igniter 2 -N132-
- 4 - Front passenger thorax airbag igniter -N200-
- 5
- Front passenger head curtain airbag igniter -N252-
- Coupe' Only
- 6 - Battery interrupt igniter -N253-
- 7 - Front passenger airbag -disabled- indicator lamp -K145-
- 8
- Driver head curtain airbag igniter -N251-
- Coupe' Only
- 9 - Driver thorax airbag igniter -N199-
- 10 - Driver airbag igniter -N95-
- 11 - Steering column electronics control module J527
- 12 - Airbag indicator lamp -K75-
