Left Door Cut-Off Connector, Disconnecting

Procedure

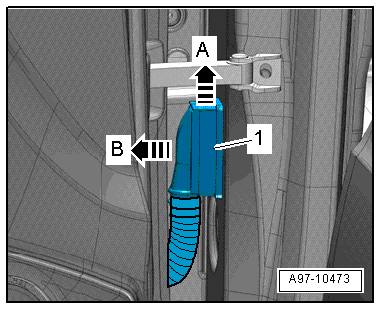

Fig 1: Disconnecting Door Cut-Off Connector
GWWA97-10473Courtesy of AUDI OF AMERICA, LLC
NOTE:

The removal and installation is the same for both sides.

-- Open the door.

-- Release the connector safety catch in the direction of -arrow A- and remove the door cut-off connector -1- outward in direction of -arrow B-.
