Left A-Pillar Connector Station, Removing And Installing: Removing

-- Turn off the ignition and disconnect the ground cable from the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

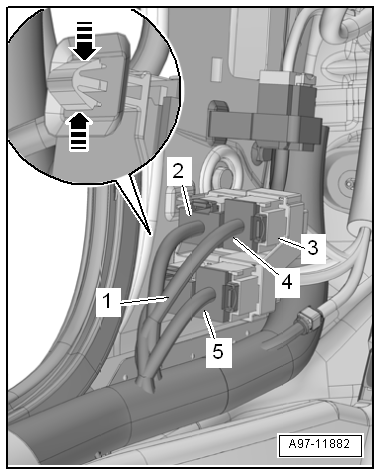

-- Release the retainers in the direction of the -arrows- and disengage the connector station -3- at the A-pillar.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1, 2, 4 and 5-.

-- Release the retainer -3- in the direction of the -arrow- and push the connector terminal -2- out of the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC
