Relay And Fuse Carrier 4 -SR4-, Roadster

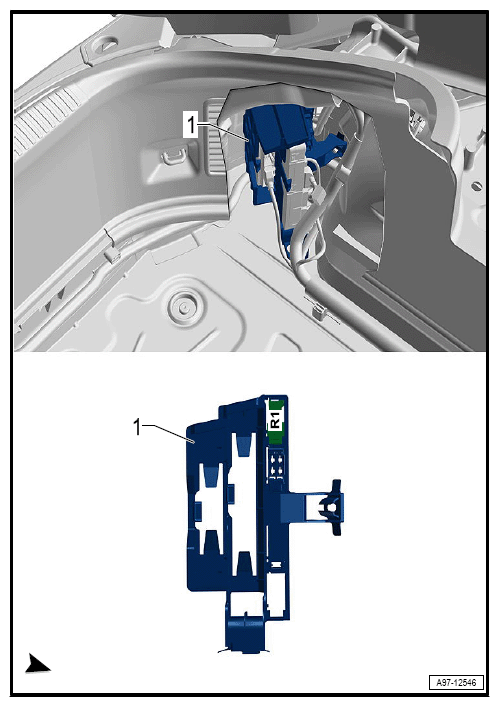

  1. 1  - Relay and fuse carrier 4 -SR4-
  2. R1  - Rear window defogger relay -J9-
    • Through June 2018
  3. R1  - Not Used
    • From June 2018
G12778484Courtesy of AUDI OF AMERICA, LLC
