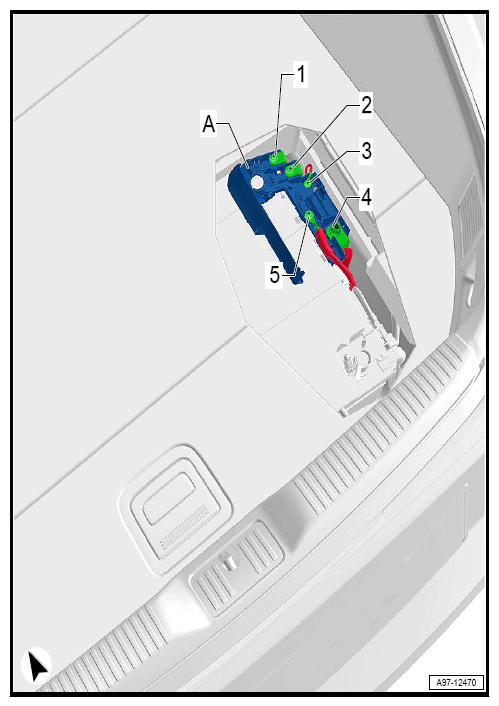

Safety Fuse Carrier On Battery -A-, Though 2017 My

1. A  - Main fuse carrier on Battery A
2. 1  - Safety fuse 3 -S133-, 110 A
3. 2  - Safety fuse 2 -S132-, 110 A
4. 3  - Connector Battery monitoring control module J367
5. 4  - Connector Remote start connection TV32
6. 5  - Safety fuse 1 -S131-, 30 A

Courtesy of AUDI OF AMERICA, LLC
