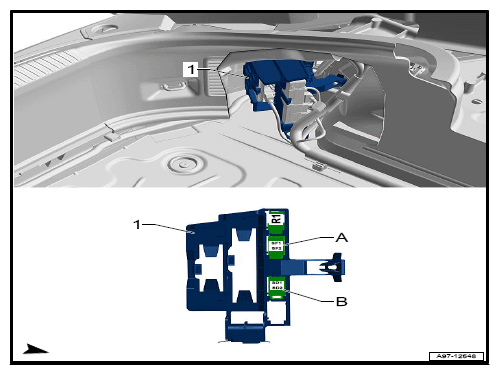

Fuse Panel D -SD- On Relay And Fuse Carrier 4 -SR4- Location

  1. 1  - Relay and fuse carrier 4 -SR4-
  2. B  - Fuse Panel D -SD-
G12778478Courtesy of AUDI OF AMERICA, LLC
