Fuse And Relay Diagrams -- TT QUATTRO
>>
Comp. LOC. Fuses
>>
Fuse Panel A -SA-, Through 2018 My
>>

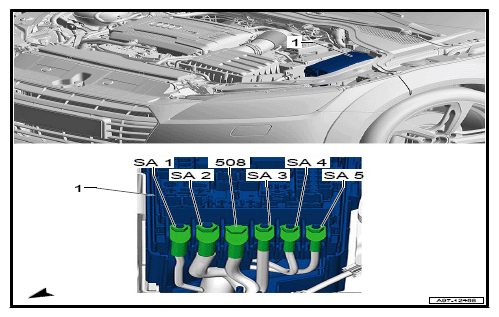

Fuse Panel A -SA- Location, Through 2018 My
Fuse Panel A -SA- Location, Through 2018 My
1
- Fuse Panel A -SA-
508
- Threaded Connection terminal 30 (on electronics box), B1
Courtesy of AUDI OF AMERICA, LLC
Courtesy of AUDI OF AMERICA, LLC
