Circuit Breaker On Relay And Fuse Carrier 3 -SR3-, LHD

  1. 1  - Relay and fuse carrier 3 -SR3-
  2. A  - Front Passenger's Power Seat Adjustment Circuit Breaker 1 -S46-, 15 A, light-blue
  3. B  - Not Used

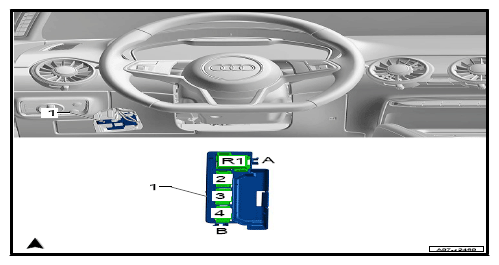

G12778473Courtesy of AUDI OF AMERICA, LLC
