Overview - Brake Pedal

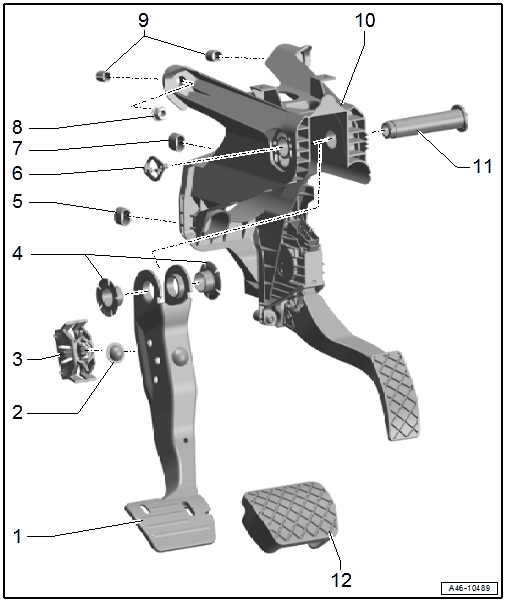

Fig 1: Exploded View Of Brake Pedal

Courtesy of AUDI OF AMERICA, LLC

1. Brake Pedal
   • Removing and installing. Refer to BRAKE PEDAL, REMOVING AND INSTALLING
   • Disconnecting. Refer to BRAKE PEDAL, DISCONNECTING FROM BRAKE BOOSTER
   • Attaching. Refer to BRAKE PEDAL, ATTACHING TO BRAKE BOOSTER
2. Bearing Shell
   • Installed between the brake booster and the brake pedal
3. Mount
   • For the brake booster ball head
4. Bearing Bushing
   • Cannot be replaced
   • Note the installation position
5. Bushing
   • Oval
6. Clip
   • Replace after removing
   • For mounting pin
7. Bushing
   • Oval
8. Nuts
   • Tightening specification. Refer to Fig 2
   • Replace after removing
   • Self-locking
9. Bushings
   • Round
10. Pedal Assembly/Mounting Bracket
    • Removing and installing. Refer to MOUNTING BRACKET, REMOVING AND INSTALLING .
11. Mounting Pin
    • Remove the mounting bracket to remove.
    • Cannot be removed without destroying it
      CAUTION:

      Do not lubricate or grease the mounting pin. The mounting pin must remain dry.

12. Pedal Rubber

Bracket - Tightening Specification and Sequence

Fig 2: Brake Booster - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts to 25 Nm in the sequence -1 through 4-.
