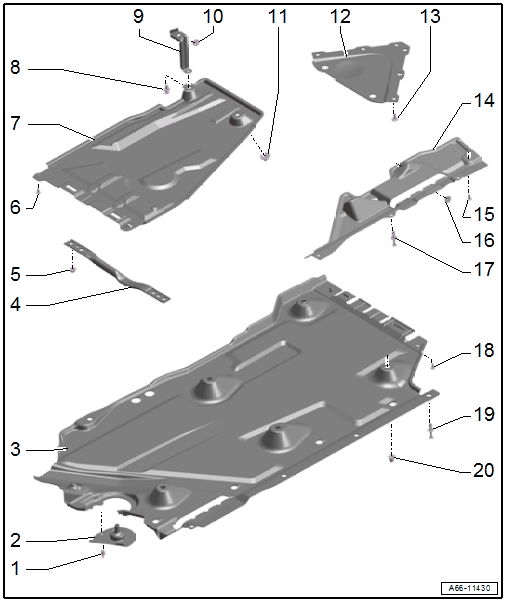

Overview - Underbody Trim Panels
- Expanding Rivet
- Vehicle Lifting Point
- Center Underbody Panel
- Removing and installing. Refer to CENTER UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
- Rear Tunnel Brace
- Removing and installing. Refer to REAR TUNNEL BRACE, REMOVING AND INSTALLING .
- Nut
- 55 Nm
- Quantity: 4
- Bolt
- 2 Nm
- Quantity: 2
- Rear Underbody Trim Panel
- Removing and installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
- Expanding Rivet
- Bracket
- Nut
- 2 Nm
- Nut
- 2 Nm
- With retainer
- Underbody Trim Panel Diagonal Brace
- AWD vehicles
- Removing and installing. Refer to UNDERBODY TRIM PANEL DIAGONAL BRACE, AWD VEHICLES .
- Bolt
- 8 Nm
- Quantity: 6
- Outer Rear Underbody Trim Panel
- Removing and installing. Refer to OUTER REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Nut
- 2 Nm
- Quantity: 2
- Expanding Rivet
- Quantity: 2
- Bolt
- 2 Nm
- Quantity: 2
- Expanding Rivet
- Quantity: 4
- Nut
- 2 Nm
- With retainer
- Quantity: 6
