Spoiler, Adjustment Dimension

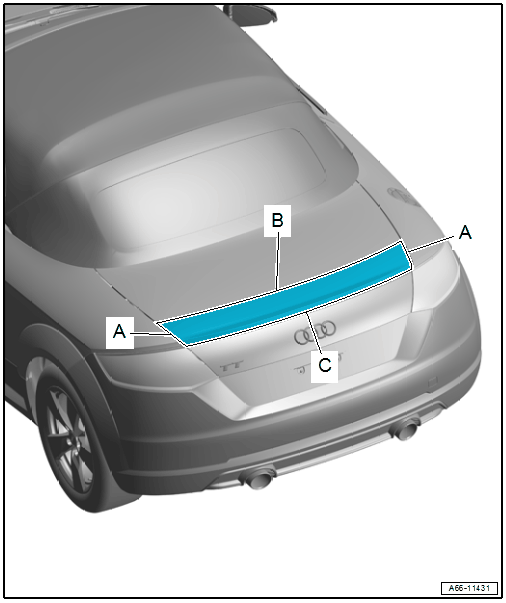

GWWA66-11431Courtesy of AUDI OF AMERICA, LLC
  1. A -

    Side Panel to Spoiler

    • Gap dimension = 3.5 mm
  2. B -

    Rear Lid to Spoiler

    • Gap dimension = 2.0 mm
  3. C -

    Rear Lid to Lower Spoiler

    • Gap dimension = 2.2 mm
