Overview - Radiator Grille

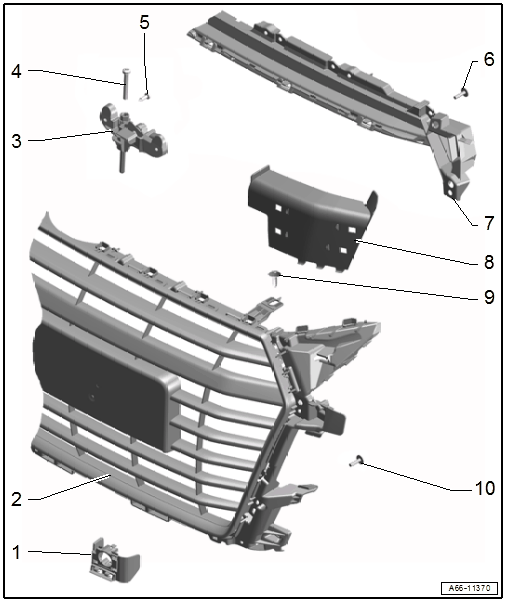

Fig 1: Exploded View Of Radiator Grille, Through MY 2018

Courtesy of AUDI OF AMERICA, LLC

Mount
- For the parking aid sensor
- Removing and installing. Refer to FRONT PARKING AID SENSOR MOUNT, REMOVING AND INSTALLING .
Radiator Grille
- Removing and installing. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING .
Mount
- For the Pedestrian Protection Center Crash Sensor -G693-
- With support for the bumper adjustment
- Removing and installing. Refer to Pedestrian Protection Center Crash Sensor -G693- MOUNT, REMOVING AND INSTALLING .
Bolt
- 4 Nm
Bolt
- 2 Nm
- Quantity: 3
Bolt
- 1.5 Nm
- Quantity: 5
Center Reinforcement Brace
- Removing and installing. Refer to CENTER REINFORCEMENT BRACE, REMOVING AND INSTALLING .
Cover
- For the radiator grille
Bolt
- 4 Nm
- Quantity: 2
Bolt
- 1.5 Nm
- Quantity: 10
