Noise Insulation Upper Section, Removing And Installing: Removing

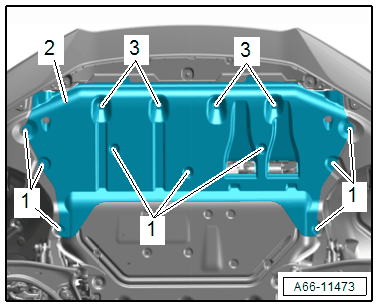

-- Remove the bolts -1 and 3-.

-- Remove the noise insulation upper section -2-.

GWWA66-11473

Courtesy of AUDI OF AMERICA, LLC
