Noise Insulation Lower Section, Removing And Installing: Removing

-- Remove the noise insulation upper section. Refer to NOISE INSULATION UPPER SECTION, REMOVING AND INSTALLING .

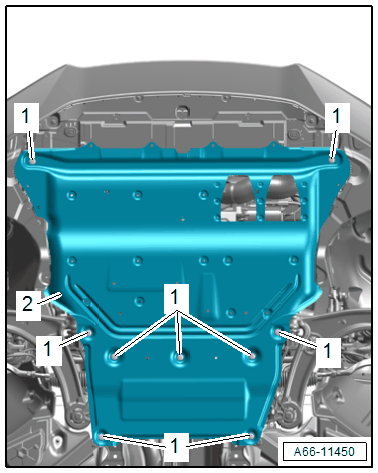

-- Remove the bolts -1-.

-- Remove the noise insulation lower section -2-.

GWWA66-11450Courtesy of AUDI OF AMERICA, LLC
