Home >> Audi >> 2017 >> TT Quattro Base, 2D Convertible >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Exterior Equipment (2 Of 2) [Roadster] >> 66 Exterior Equipment >> Moldings, Trims, Extensions And Trim Panels >> Trim Molding, Removing And Installing >> A-Pillar Trim Molding, Removing And Installing >> Removing

A-Pillar Trim Molding, Removing And Installing: Removing

-- Remove the A-pillar door seal/windshield frame in the A-pillar area. Refer to A-PILLAR DOOR SEAL/WINDSHIELD FRAME, REMOVING AND INSTALLING .

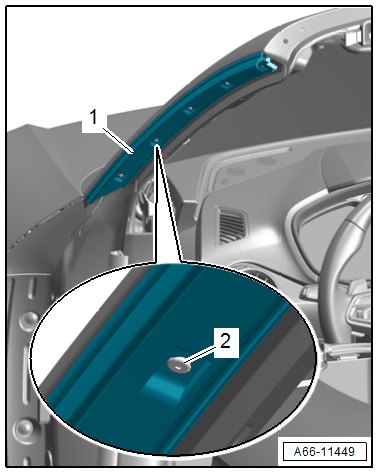

-- Drill out the rivet heads -2- of the pop rivets and drive out the rivet shafts.

-- Remove the trim molding -1-.

GWWA66-11449Courtesy of AUDI OF AMERICA, LLC
