Sill Panel Trim, Removing And Installing: Removing

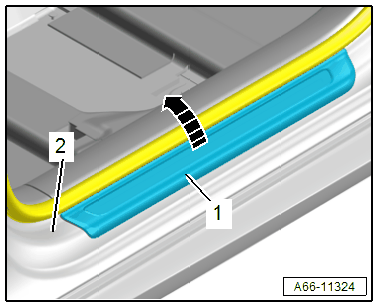

-- Carefully warm up the sill panel trim -1- using the Wiring Harness Repair Set - Hot Air Blower:VAS1978/14A  .

-- Carefully pry off the sill panel from the side sill -2- using the Trim Removal Wedge:3409  in direction of -arrow-.

GWWA66-11324Courtesy of AUDI OF AMERICA, LLC
