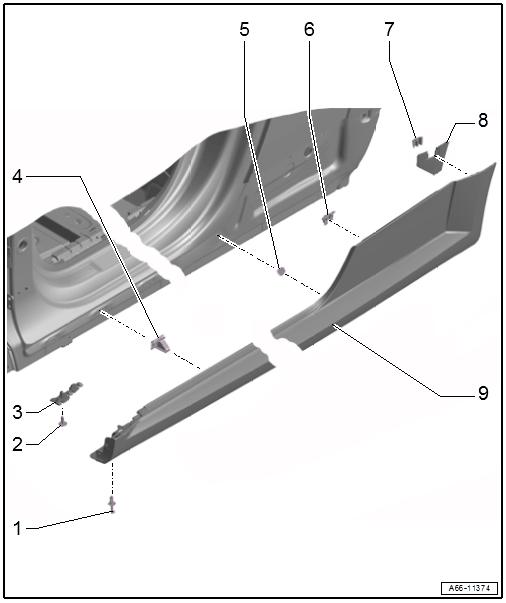

Overview - Side Sill Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Expanding Clip
- Quantity: 6
Bolt
- 1.5 Nm
Bracket
- For the side sill trim panel
- Removing and installing. Refer to SIDE SILL TRIM PANEL BRACKET, REMOVING AND INSTALLING .
Clip
- Quantity: 6
- Replace if damaged
Clip
- Replace if damaged
Clip
- Quantity: 3
- Replace if damaged
Reinforcement Plate
Clip
- Replace if damaged. Refer to REINFORCEMENT PLATE FOR SIDE SILL TRIM PANEL, REMOVING AND INSTALLING
Side Sill Trim Panel
- Removing and installing. Refer to SIDE SILL TRIM PANEL, REMOVING AND INSTALLING .
