Front Wheel Housing Liner, Removing And Installing: Removing

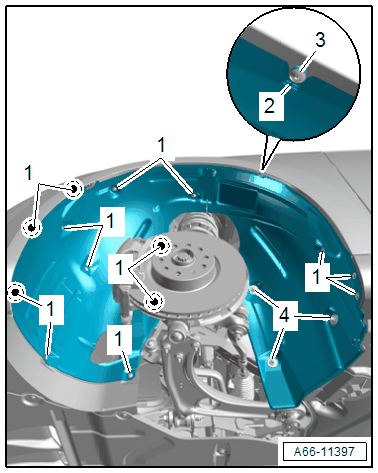

-- Remove the bolts -1-.

GWWA66-11397Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and then disengage the bracket -3- on the fender.

-- Remove nuts -4-.

-- Remove the wheel housing liner.
