Underbody Trim Panel, Removing And Installing, Center: Removing

-- If equipped, remove the rear underbody trim panel. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

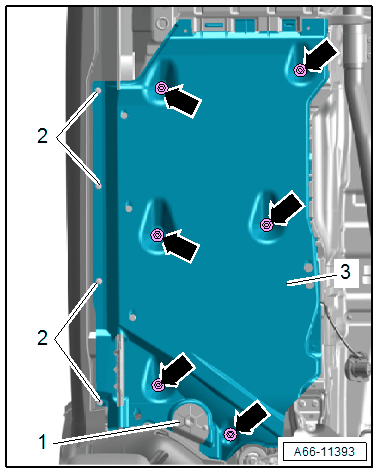

-- Remove the expanding rivets -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -arrow-.

-- Remove the center underbody trim panel -3- at the same time guide out of the lifting platform mounting -1-.
