Rear Underbody Trim Panel, Removing And Installing: Removing

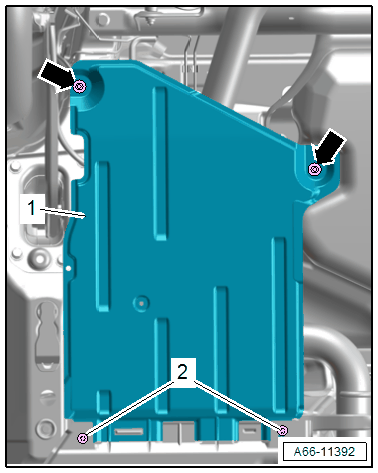

-- Remove the expanding rivets or nuts -arrows-.

GWWA66-11392Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2-.

-- Remove the rear underbody trim panel -1-.
