Outer Rear Underbody Trim Panel, Removing And Installing: Removing

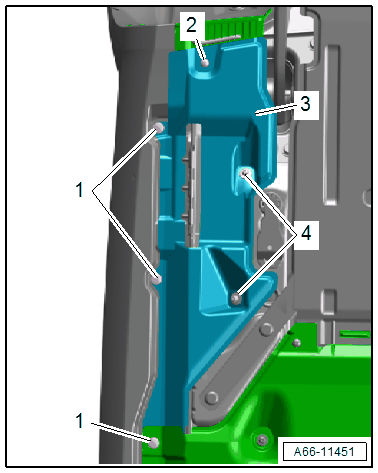

-- Remove the expanding rivet -1-.

GWWA66-11451Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and nuts -4-.

-- Remove the rear underbody trim panel -3-.
