Tunnel Brace, Removing And Installing: Removing

-- If equipped, remove the rear underbody trim panel. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .

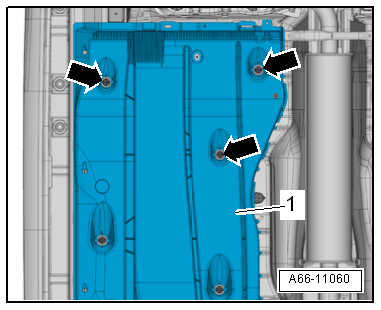

-- Remove the nuts -arrows- and push the underbody trim panel -1- slightly downward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear tunnel brace -2-.
