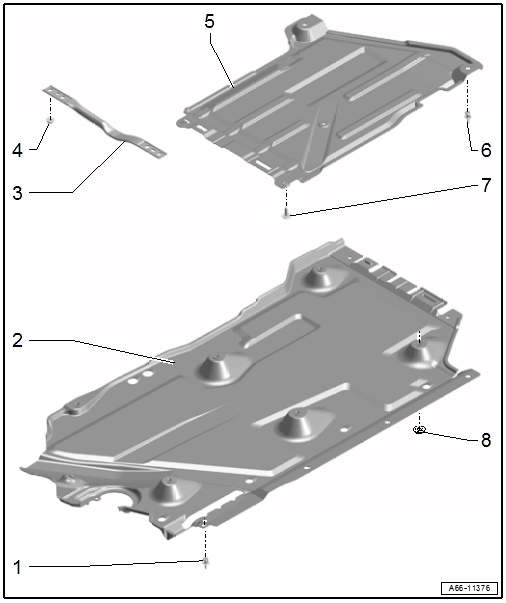

Overview - Underbody Trim Panels, Coupe

Courtesy of AUDI OF AMERICA, LLC

Expanding Rivet
- Quantity: 4
Underbody Trim Panel
- Center
- Removing and Installing. Refer to UNDERBODY TRIM PANEL, REMOVING AND INSTALLING, CENTER .
Rear Tunnel Brace
- Removing and Installing. Refer to TUNNEL BRACE, REMOVING AND INSTALLING .
Nut
- 20 Nm
- Quantity: 4
Underbody Trim Panel
- Rear
- Removing and Installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
Expanding Rivet/Nut
- 2 Nm
- Quantity: 2
Bolt
- 2 Nm
- Quantity: 2
Nut
- 2 Nm
- With fastener
- Quantity: 6
