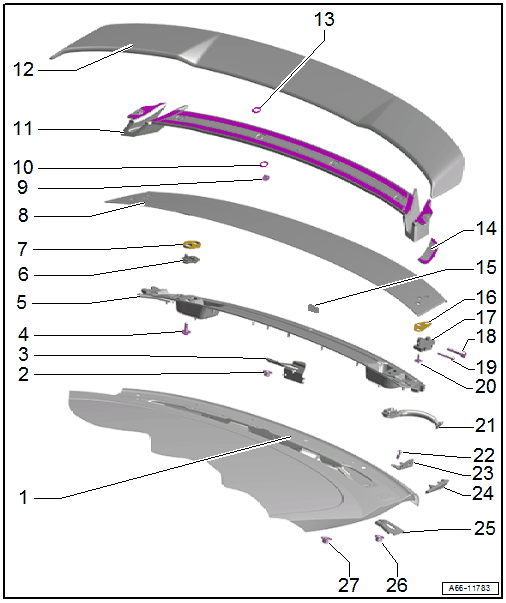

Overview - Fixed Spoiler, Through My 2018
- Rear Lid
- Nut
- 2 Nm
- Replace after removing.
- Quantity: 2
- Emergency Release Cable Bracket
- Roadster
- Bolt
- 8 Nm
- Replace after removing.
- Quantity: 2
- Adjusting. Refer to SPOILER, ADJUSTING .
- Lower Mount for the Spoiler
- Replace the mount if the seal is damaged
- With seal
- Removing and Installing. Refer to LOWER MOUNT FOR THE SPOILER, REMOVING AND INSTALLING, FIXED .
- Adjusting Mechanism
- Equipped with a new seal -item- 7 clipped in the spoiler
- Adjusting. Refer to SPOILER, ADJUSTING .
- Foam Seal
- Replace after removing.
- Self-adhesive
- Spoiler Trim
- Removing and Installing. Refer to SPOILER TRIM, REMOVING AND INSTALLING .
- Bolt
- 7 Nm
- Replace after removing.
- Quantity: 6
- Sealing Piece
- Replace after removing.
- Quantity: 4
- Self-adhesive
- Upper Mount for the Spoiler
- Removing and Installing. Refer to SPOILER, REMOVING AND INSTALLING .
- Spoiler
- Removing and Installing. Refer to FIXED SPOILER, REMOVING AND INSTALLING .
- Disassembling and assembling. Refer to SPOILER, DISASSEMBLING AND ASSEMBLING .
- Sealing Piece
- Replace after removing.
- Quantity: 4
- Self-adhesive
- Cover
- Replace after removing.
- For bolt
- Buffer
- Replace after removing.
- Center
- The vehicle and buffer must be at room temperature.
- Clean the adhesive surface on the spoiler with Cleaning Solution: D 009 401 04 and let it dry.
- Place on the marking and press firmly
- Seal
- Replace after removing.
- Self-adhesive
- Adapter Plate
Removing and Installing. Refer to SPOILER TRIM, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Replace after removing.
- Quantity: 3
- Mount with Water Drain Hose
- Replace after removing.
- When attaching on the mount pay attention to the mark
- Bolt
- 5 Nm
- Replace after removing.
- Quantity: 2
- Bracket for Spoiler
- Removing and Installing. Refer to SPOILER BRACKET ON REAR LID, REMOVING AND INSTALLING .
- Spoiler Cover
- Retaining Plate
- Nut
- Replace after removing.

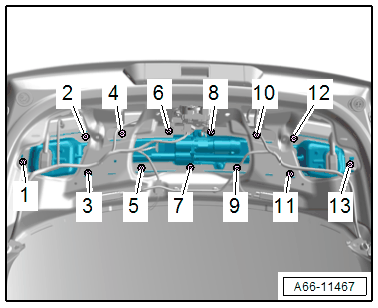

- Tightening specification and sequence. Refer to Figure.
- Quantity: 2
- Nut
- Replace after removing.
- Tightening specification and sequence. Refer to Figure.
- Quantity: 11
