Overview - Electric Spoiler

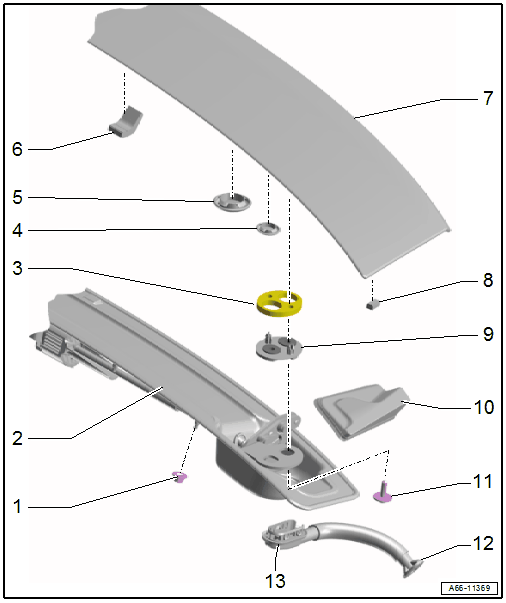

Fig 1: Exploded View Of Electric Spoiler

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • Tightening specification and sequence. Refer to Fig 2.
   • Replace after removing.
   • Quantity: 13
2. Mount with Drive Unit
   • For the spoiler
   • With seal
   • Replace the mount if the seal is damaged
   • Removing and Installing. Refer to MOUNT WITH SPOILER DRIVE UNIT, REMOVING AND INSTALLING .
3. Foam Seal
   • Replace after removing.
   • Self-adhesive
4. Bonding Point
   • For the 10 mm diameter hole
   • Apply on the inside on the spoiler
   • Quantity: 4
5. Plug
   • For the 30 mm diameter hole
   • Insert on the inside in the spoiler
   • Quantity: 2
6. Buffer
   • Replace after removing.
   • Center
   • The vehicle and buffer must be at room temperature.
   • Clean the adhesive surface on the spoiler with Cleaning Solution: D 009 401 04  and let it dry.
   • Place on the marking and press firmly
7. Spoiler
   • Removing and Installing. Refer to ELECTRIC SPOILER, REMOVING AND INSTALLING .
8. Buffer
   • Replace after removing.
   • Side
   • Quantity: 2
   • The vehicle and buffer must be at room temperature.
   • Clean the adhesive surface on the spoiler with Cleaning Solution: D 009 401 04  and let it dry.
   • Place on the marking and press firmly
9. Adjusting Mechanism
   • Equipped with a new seal -item-  3 clipped in the spoiler
   • Adjusting. Refer to SPOILER, ADJUSTING .
10. Buffer
    • Replace after removing.
    • Inserted in the rear lid
    • Removing and Installing. Refer to BUFFER, REMOVING AND INSTALLING .
11. Bolt
    • 8 Nm
    • Replace after removing.
    • Quantity: 2
    • Adjusting. Refer to SPOILER, ADJUSTING .
12. Water Drain Hose
    • When attaching on the mount -item 2- pay attention to the marks.
13. Mount
    • For the water drain

Spoiler - Tightening Specification and Sequence

Fig 2: Spoiler - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts to 2 Nm in the following sequence: -1 through 13-.
