Overview - Noise Insulation, Coupe

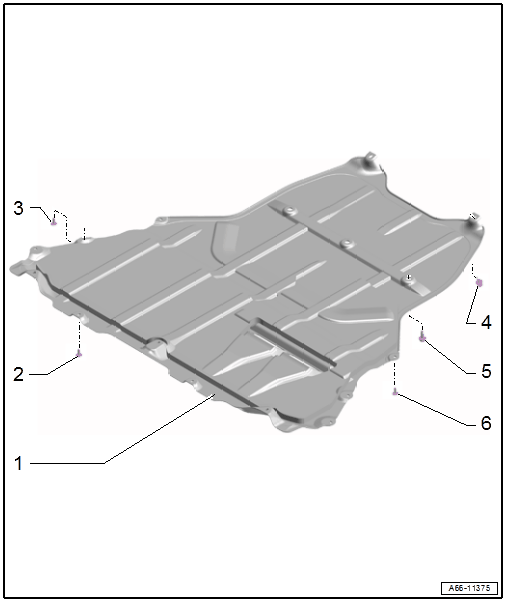

GWWA66-11375Courtesy of AUDI OF AMERICA, LLC
  1. Noise Insulation
  2. Bolt
    • 3 Nm
    • Quantity: 5
  3. Bolt
    • 3 Nm
    • Quantity: 3
  4. Expanding Rivet
    • Quantity: 2
  5. Bolt
    • 6 Nm
    • Replace after removing.
    • Quantity: 3
  6. Bolt
    • 3 Nm
    • Quantity: 3
