Noise Insulation, Removing And Installing, Coupe: Removing

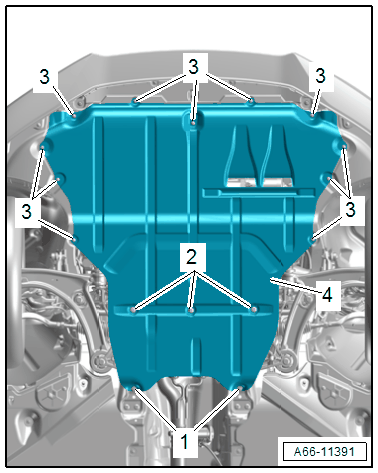

-- Remove the expanding rivet -1-.

GWWA66-11391

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -2 and 3-.

-- Remove the front noise insulation -4-.
