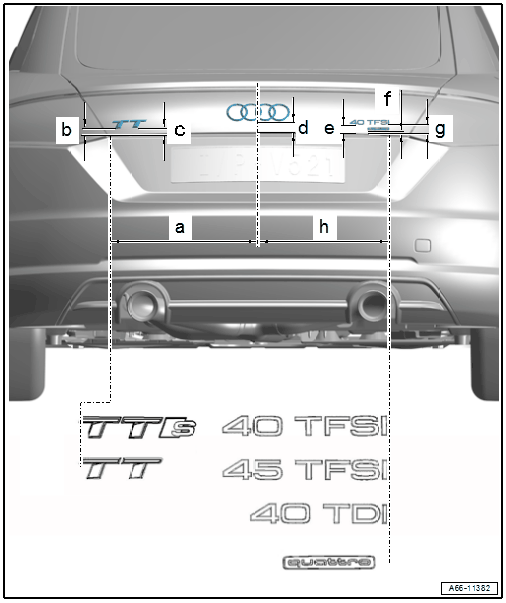

Dimensions - Rear Lid Name Badges And Emblems

Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = 432 mm
• Dimension -b- = 23.5 mm
• Dimension -c- = 24 mm
• Dimension -d- = 34 mm
• Dimension -e- = 27 mm
• Dimension -f- = 16.5 mm
• Dimension -g- = 26.5 mm
• Dimension -h- = 434 mm
