Trim Molding, Removing And Installing, Roof: Removing

-- Tape around the roof trim molding on the A-pillar to prevent damaging the paint.

-- Remove the door seal for the roof trim molding. Refer to ROOF TRIM MOLDING DOOR SEAL, REMOVING AND INSTALLING .

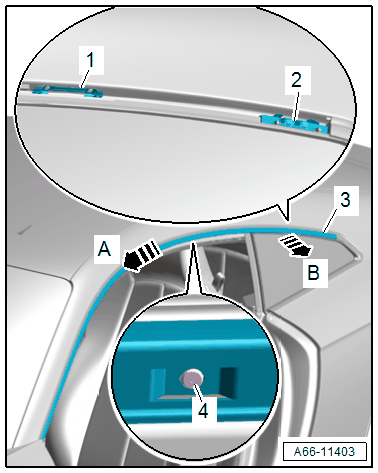

-- Drill out the rivet head -4- from the pop rivets and drive out the rivet shafts.

GWWA66-11403Courtesy of AUDI OF AMERICA, LLC

-- Pull the area of the rear side window roof trim molding -3- forward out of the mount -1- in direction of -arrow A- and then out of the clip -2- in direction of -arrow B-.

-- Remove the roof trim molding.
