Overview - Rear Heat Shield

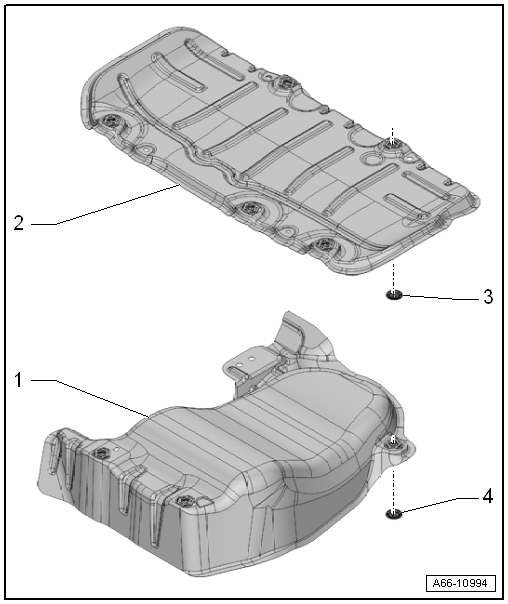

Fig 1: Exploded View Of Rear Heat Shield (Vehicles without High-Voltage System)

Courtesy of AUDI OF AMERICA, LLC

Heat Shield
- For the center of the exhaust system
- Removing and Installing. Refer to CENTER EXHAUST SYSTEM HEAT SHIELD, REMOVING AND INSTALLING .
Heat Shield
- For the rear muffler
- Removing and Installing. Refer to REAR MUFFLER HEAT SHIELD, REMOVING AND INSTALLING .
Lock Washer
- Quantity: 4
Lock Washer
- Quantity: 4
