Convertible Top Open Position Switch -F171-, Convertible Top Front Closed Position Switch -F202-, REMOVING AND INSTALLING: Removing

-- Remove the convertible top. Refer to CONVERTIBLE TOP, REMOVING AND INSTALLING .

-- Release the retainers in direction of -arrows- and remove the switch -3- from the mount -4-.

-- Free up the wiring harness -1- on the main bearing -2-.

Courtesy of AUDI OF AMERICA, LLC

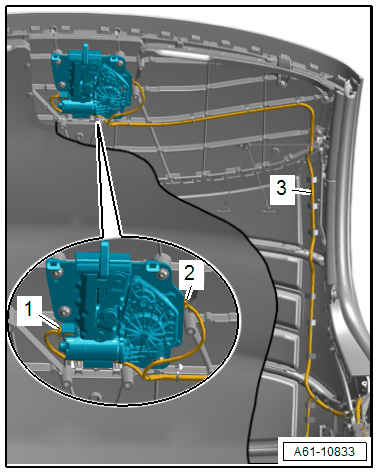

-- Free up the convertible top headliner on the left side. Refer to CONVERTIBLE TOP HEADLINER, REMOVING AND INSTALLING .

-- Disconnect the connectors -1 and 2- and disconnect the connector on the rear window.

-- Free up the wiring harness -3- on the convertible top and remove.

Courtesy of AUDI OF AMERICA, LLC
