Component Location Overview - Convertible Top

NOTE:

The names of the components given below are used in the following descriptions.

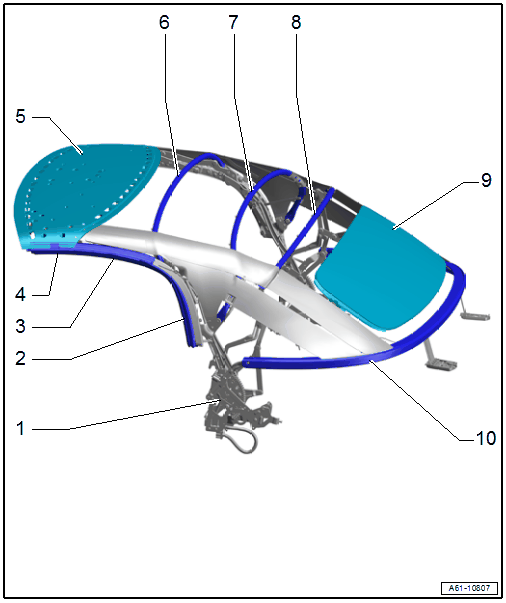

GWWA61-10807Courtesy of AUDI OF AMERICA, LLC
  1. Main Bearing
  2. Rear Roof Frame
  3. Center Roof Frame
  4. Front Roof Frame
  5. Front Rail
  6. Bow 1
  7. Bow 2
  8. Bow 3
  9. Rear Window
    • No replacement part
  10. Tensioning Bracket
