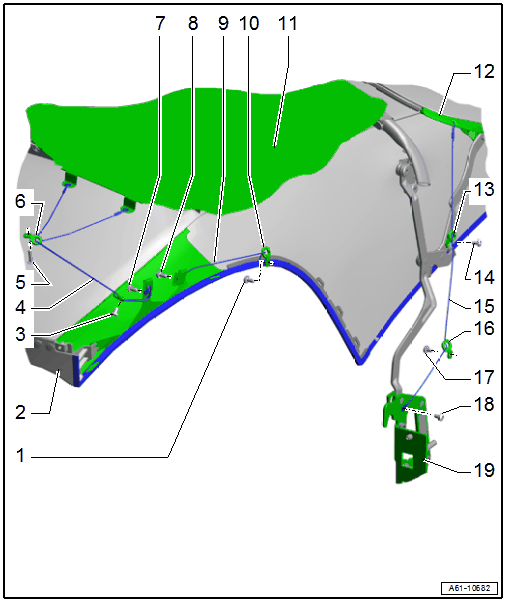

Overview - Convertible Top Headliner Tension And Guide Cable

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 3 Nm
2. Headliner
3. Bolt
   • 3 Nm
4. Tension Cable
   • For acoustic headliner
5. Bolt
   • 3 Nm
6. Eye
7. Bolt
   • 3 Nm
8. Bolt
   • 3 Nm
9. Tension Cable
   • For headliner
10. Eye
11. Acoustic Headliner
12. Window Frame
    • For rear window
13. Eye
14. Bolt
    • 3 Nm
15. Guide Cable
    • For rear window frame
16. Eye
17. Bolt
    • 3 Nm
18. Bolt
    • 3 Nm
19. Convertible Top Main Bearing
