Rear Roof Frame Trim Panel, Removing And Installing: Removing

-- Bring the convertible top -1- into position shown.

Courtesy of AUDI OF AMERICA, LLC

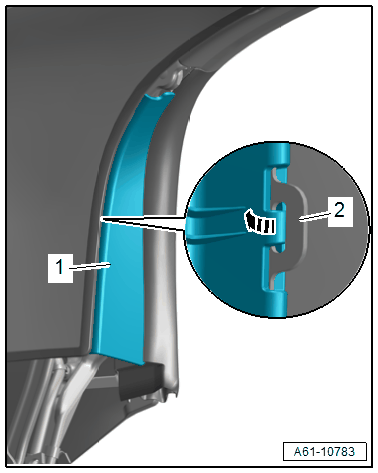

-- Release the retainer in direction of -arrow- and disengage the headliner retaining strip tab -2- on the rear roof frame -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2-.

-- Remove the trim panel -3-.

Courtesy of AUDI OF AMERICA, LLC
