Front Rail Trim Panel, Removing And Installing: Removing

-- Bring the convertible top -1- into position shown.

GWWA61-10849Courtesy of AUDI OF AMERICA, LLC

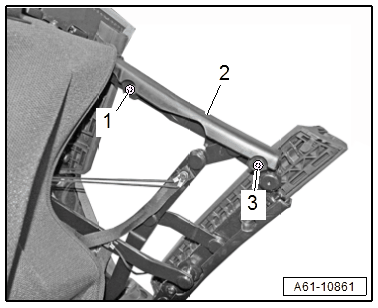

-- Remove the bolts -1 and 3-.

-- Remove the trim panel -2-.

GWWA61-10861Courtesy of AUDI OF AMERICA, LLC
