Convertible Top Front Lock Switch -F172-, Convertible Top Locking Readiness Switch -F542-, REMOVING AND INSTALLING: Removing
-- Remove the windshield frame trim panel. Refer to COMPONENT LOCATION OVERVIEW - VEHICLE INTERIOR TRIM PANELS .

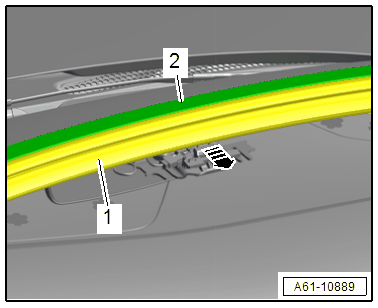

-- Carefully warm up the seal -1- in the area of the convertible top lock using the :VAG1416 .
-- Loosen the seal -1- carefully from the windshield frame -2- in direction of -arrow-.

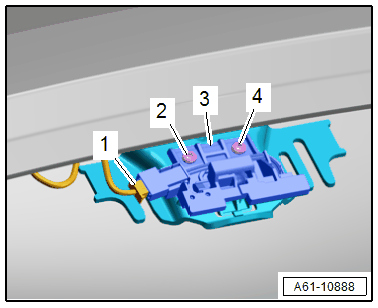

-- Disconnect the connector -1-.
-- Remove the bolts -2 and 4-.
-- Remove the switch unit -3-
