Gear For Convertible Top Operation, Removing And Installing: Removing

-- Remove the convertible top motor. Refer to CONVERTIBLE TOP MOTOR -V82- / CONVERTIBLE TOP MOTOR 2 -V576-, REMOVING AND INSTALLING .

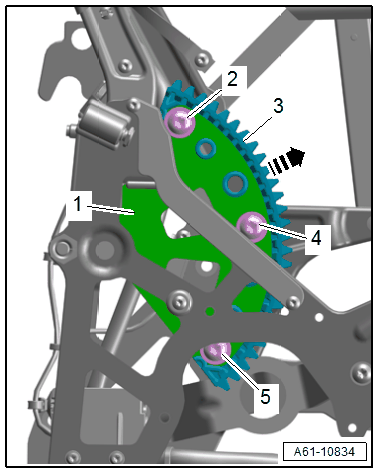

-- Remove the bolts -2, 4 and 5-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the gear -3- toward the rear from the mount -1- in direction of -arrow-.
