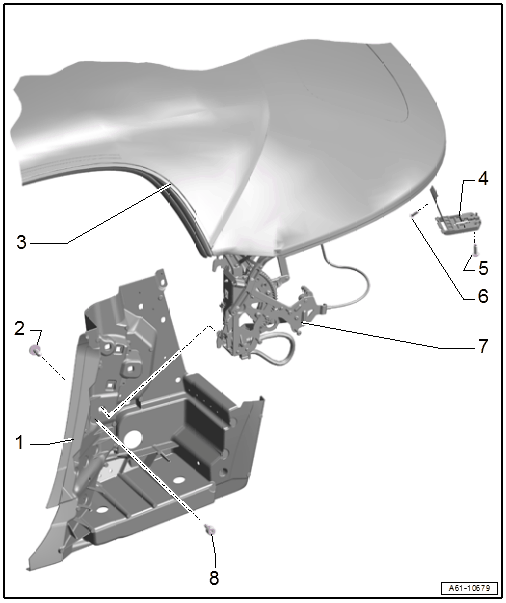

Overview - Convertible Top Main Bearing

Courtesy of AUDI OF AMERICA, LLC

Body
Bolt
- 34 Nm
- Quantity: 3
Convertible Top
- Removing and Installing. Refer to CONVERTIBLE TOP, REMOVING AND INSTALLING .
Tensioning Strap
- To adjust the tensioning bracket to the convertible top compartment. Refer to HEIGHT ADJUSTMENT AT BOW .
Bolt
- 4 Nm
- Quantity: 2
Bolt
- 3 Nm
Convertible Top Main Bearing
Bolt
- 10 Nm
- Quantity: 2
