Convertible Top Locking Motor -V223-, REMOVING AND INSTALLING: Removing
-- Remove the convertible top latch trim panel. Refer to CONVERTIBLE TOP LATCH TRIM PANEL, REMOVING AND INSTALLING .

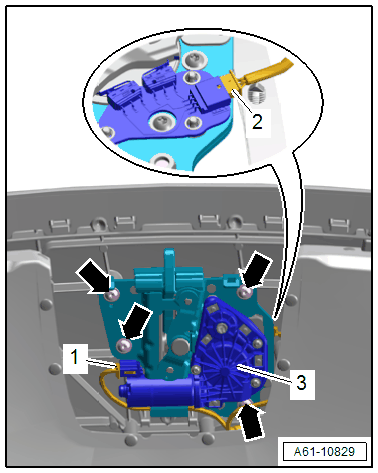

-- Disconnect the connector -1-.
-- Label the bolts -arrows- for reinstallation and remove.
- To remove mark the position of the bolts on the convertible top locking motor. If a motor replacement takes place, the identical installation position must be ensured. Mark the installation position on the motor to be removed and transfer to the motor to be installed.
-- Remove the convertible top locking motor -3- and disconnect the connector -2-.
