Centering Piece, Removing And Installing: Removing

-- Remove the convertible top latch trim panel. Refer to CONVERTIBLE TOP LATCH TRIM PANEL, REMOVING AND INSTALLING .

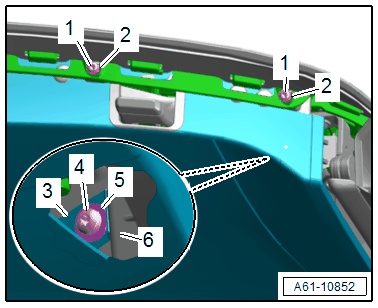

-- Remove the bolts -1-.

Courtesy of AUDI OF AMERICA, LLC

• Pay attention to the plastic washer -2- when removing the bolt.

-- Remove the bolt -4- for the guide strap -3- and the convertible top headliner retaining strip -6-

TIP:

To remove the bolt the convertible top headliner must be pushed slightly to the side.

• Pay attention to the washer -5- when removing the bolt.

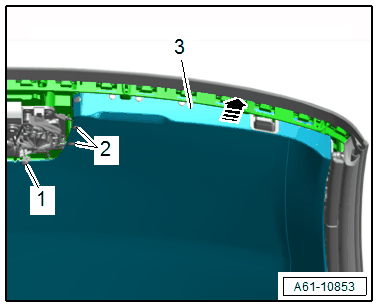

-- Pry up the clips -1 and 2- around the convertible top locking motor.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the convertible top headliner -3- from the front rail -arrow-.

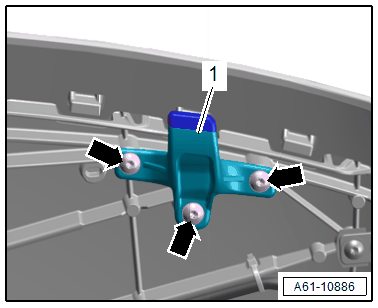

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the centering piece -1-.

• When removing the centering piece pay attention to the quantity and installation location of the washers(s).
