Water Drip Tray, Removing And Installing: Removing

-- Remove the convertible top. Refer to CONVERTIBLE TOP, REMOVING AND INSTALLING .

-- Loosen the convertible top compartment trim panel in the area of the water drip tray. Refer to Removing => Remove the expanding rivets -3- on the convertible top compartment trim panel -1-. .

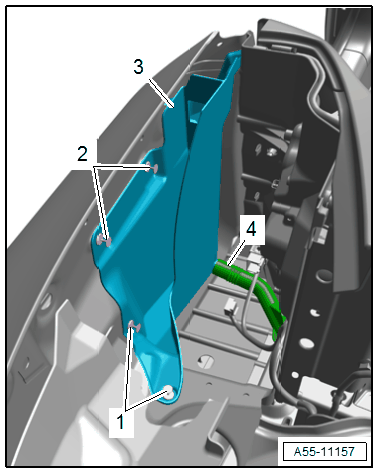

-- Remove the water drain hose -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the expanding rivets -1 and 2-.

-- Remove the water drip tray -3-.
