Rear Roof Frame Trim Panel, Removing And Installing: Removing
-- Bring the convertible top -1- into position shown.

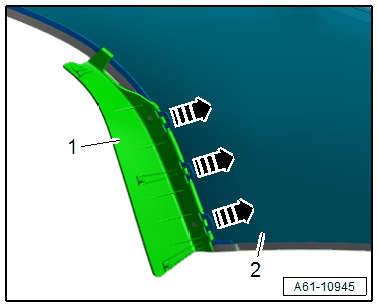

-- Starting from the bottom loosen the engagement tabs for the convertible top headliner -2- from trim panel -1-. At the same time push the tabs inward in direction of -arrows- and slid them forward.
-- Loose the upper engagement tabs for the trim panel -1- by lightly turning and tipping.

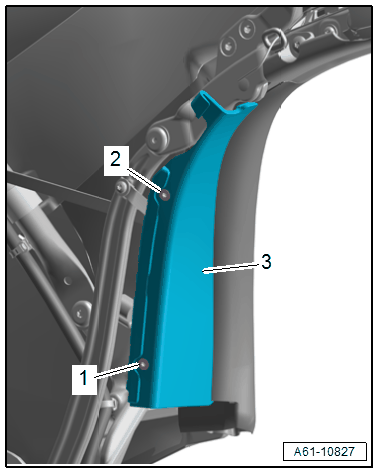

-- Remove the bolts -1 and 2-.
-- Remove the trim panel -3-.
- When removing the trim panel pay attention to the quantity and installation location of the spacer(s).
