Convertible Top Latch Trim Panel, Removing And Installing: Removing

-- Bring the convertible top -1- into position shown.

GWWA61-10849Courtesy of AUDI OF AMERICA, LLC

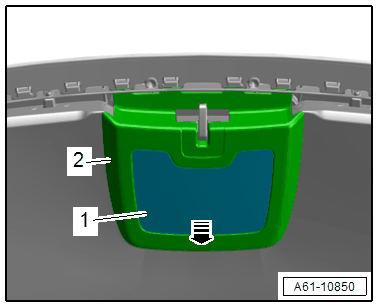

-- Release the cover -1- from the trim panel -2- in direction of -arrow- and disengage on the front side.

GWWA61-10850Courtesy of AUDI OF AMERICA, LLC

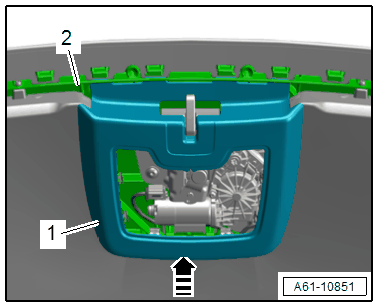

-- Push the trim panel -1- on the back side in direction of -arrow- slightly toward the rear, tilt downward and then pull it out toward the rear and out of the mount -2-.

GWWA61-10851Courtesy of AUDI OF AMERICA, LLC
